Blood- and Infusion Warming

Blood and Infusion Warmer
       Nuova/05

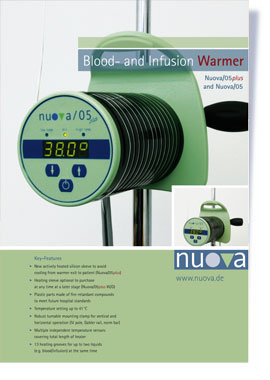

Blood- and Infusion warmer as PDF (2,7 MB)

Type:

                                                 Power supply:

Power consumption:


Current:

Type of protection:

Applied part:

Degree of protection against ingress of liquids:

Alarms:



Temperature setting:

Warm-up time:


Operating temperature:

Dimensions:

Weight:

Warranty:

Accessories:

 Nuova/05plus with reusable silicon heating sleeve
Nuova/05plus W/O without reusable silicon heating sleeve (heating sleeve optional)
Nuova/05 with silicon temperature insulation tubing (no heating sleeve)

220/240V 50/60 Hz or 110/120V optional

280 Watt W/O reusable heating sleeve attachted
290 Watt with reusable heating sleeve attached

1.3 A at 220/240V or 2.6 A at 110/120V

Class I

Type B


IPX4 splash proof

Auto-shut of at 43°C (high temperature)
Audible and visual indication
Low temperature alarm (visual only)

from 37°C to 41°C in 0.5°C degrees

Approx. 60 seconds to operating temperature of 38°C
and approx. 25 seconds to 30°C

38°C

250 x 170 x 205 mm (device only)

2.5 kg

2 years from date of shipment

DEHP-free disposable PVC extension sets for Nuova blood- and infusion warmers with or without air bubble trap, 460 cm length and 470 cm length 2 x luer lock connectors, injection port and roller clamp.

General product features:

  • "Dry, Rapid Heat Warmer", heat exchange via aluminium cylinder
  • "Open System" means low cost disposable extension sets, compatible to other systems
  • Three independent temperature sensors over the total length of the heating cylinder to control entry- and exit temperature of the liquids
  • Max. operating temperature 41oC selectable in 0.5oC increments
  • Lo and Hi temperature alarm with auto-shut-off at 43oC
  • 13 grooves fo up to two liquids at the same time
  • Extension sets easy to wrap around the heating cylinder (clock-wise)
  • Robust, turnable clamp for vertical and horizontal application for all I.V. poles, Gabler Rail etc.
  • Maintenance free
  • Error codes given on the warmer's display
  • Large bright LED to view even from distance and bright ambient light
  • Plastic components made from fire-retardant compounds

Additional Features of Nuova/05plus and Nuova/05plus W/O

  • New, actively electric heated silicon heating sleeve, powered and controlled by the warmer to avoid cooling of liquids at patients end (Nuova/05"plus")
  • Heating sleeve optional for Nuova05"plus" W/O version to connect easily to the warmer by connector
