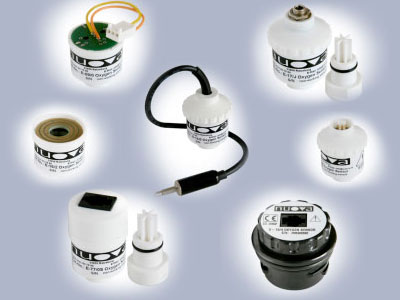

Medical Oxygen Sensors
        (O2 sensors)

1. General Specifications, intended use and characteristics of our medical oxygen sensors:

Intended use: Nuova medical oxygen sensors are intended to be used in in medical devices such as anesthesia machines, ventilators, oxygen monitors and analyzers, incubators etc. to measure oxygen concentrations in breathing gas mixtures.

  • Interferences against anesthetic gases according to DIN EN ISO 80601-2-55:2012
  • Up to 22 months warranty from the date of shipment (depending on sensor type)
  • Life time up to 60 months
  • Storage time up to 6 months max. depending on sensor type
  • Storage temperature between min. 0o C and max.  40o C in original package
  • Operating temperature between 10o C and 40o C
  • Minimum or basically no warm-up time
  • Less risk of leakage based on improved sensor housing
  • Highly accurate and stable perfomance
  • OEM possible

All technical data based on 25°C temperature, 50% relative humidity and 1013hPA pressure.
(Diving sensors and Lead free sensor on request)

Flow diverters are not included in the sensor packaging anymore and will be charged seperately

For detailed specifications and prices contact Nuova info@nuova.de ( The cross reference list is based on best knowledge of Nuova. Nuova can not be held responsible for any changes of specifications by the OEM manufacturer or any non-compatibilites.


E-09/0
  • Connector: 3-pin wired Molex
  • Measuring range: 0-100% O2
  • Output signal: 9.5–14 mV
  • Response time: < 18 seconds
  • Warranty: 16 months
  • Storage: up to 6 months

E-11/0
  • Connector: AMP350777-1
    2 way mating lock
  • Measuring Range: 0-100% O2
  • Output signal: 8.5-12.5mV
  • Response time: < 17 seconds
  • Warranty: 16 months
  • Storage: up to 6 months

E-14/0
  • Connector: 0.141" miniature phone plug on cable
  • Measuring range: 0-100% O2
  • Output signal: 8–12 mV
  • Response time: < 17 seconds
  • Warranty: 16 months
  • Storage: up to 6 months

E-14/S
  • Connector: phone plug with cable
  • Measuring range: 0-100% O2
  • Output signal: 8-12 mV
  • Response time: < 17 seconds
  • Warranty: 16 months
  • Storage: up to 6 months

E-15/0
  • Connector: 3 contact rings
    gold plated
  • Measuring range: 0-100% O2
  • Output signal: 14–20 mV
  • Response time:< 17 seconds
  • Warranty: 16 months
  • Storage: up to 6 months

E-15/2
  • Connector: 3 contact rings
  • Measuring range: 0-100% O2
  • Output signal: 14.–20 mV
  • Response time: < 12 seconds
  • Warranty: 15 months
  • Storage: up to 6 months

E-15/4
  • Connector: modular jack
  • Measuring range: 0-100% O2
  • Output signal: 8–12 mV
  • Response time: < 16 seconds
  • Warranty: 16 months
  • Storage: up to 6 months

E-15/5
  • Connector: 3.5 mm mono jack
  • Measuring range: 0-100% O2
  • Output signal: 8–12 mV
  • Response time: < 16 seconds
  • Warranty: 16 months
  • Storage: up to 6 months


E-15/5M

  • specification as E-15/5 however different housing to fit for Mindray WATO

E-16/0
  • Connector: 3-pin Molex
  • Measuring range: 0-100% O2
  • Output signal: 9.5-16 mV
  • Response time: < 12 seconds
  • Warranty: 16 months
  • Storage: up to 6 months

E-16/HTT
  • Connector: 3-pin Molex
  • Measuring range: 0-100% O2
  • 9.5-16 mV
  • Response time: 12 s at flow >2l/min
  • Warranty: 12 months
  • Storage: up to 6 months

E-17/A2
  • Connector: 3-pin Molex
  • Measuring range: 0-100% O2
  • Output signal: 8–12.5 mV
  • Response time: < 15 seconds
  • Warranty: 16 months
  • Storage: up to 6 months

E-17/A2A
  • Connector: 3 pin Molex
  • Measuring Range: 0-100% O2
  • Output signal 8-12.5 mV
  • Response time:: < 15 seconds
  • Warranty: 16 months
  • Storage: up to 6 months

E-17/A2MH3
  • Connector: 3 pin Molex
  • Measuring Range: 0-100%
  • Output Signal: 10-13mV
  • Response time: 4 seconds
  • Warranty: 12 months
  • Storage: up to 6 months
  • currently n/a

E-17/A4
  • Connector: 3-pin Molex
  • Measuring range: 0-100% O2
  • Output signal: 11-14 mV
  • Response time: < 12 seconds
  • Warranty: 12 months
  • Storage: up to 3 months

E-17/J
  • Connector: 3.5 mm mono jack
  • Flow diverter to be ordered seperately
  • Measuring range: 0-100% O2
  • Output signal: 13–16-5 mV
  • Response time: < 12 seconds
  • Warranty: 16 months
  • Storage: up to 6 months

E-17/M
  • Connector: 3-pin Molex
  • Measuring range: 0-100% O2
  • Output signal: 12.5-16.5 mV
  • Response time: < 12 seconds
  • Warranty: 16 months
  • Storage: up to 6 months

E-25/0
  • Connector: straight power jack
  • Measuring range: 0-100% O2
  • Output signal: 9–14.5 mV
  • Response time: < 12 seconds
  • Warranty: 16 months
  • Storage: up to 6 months

E-33/0
  • Connector: gold plated
    Contact rings
  • Measuring range: 0-100% O2
  • Output signal: 200 µA
  • Response time: < 20 seconds
  • Warranty: 16 months
  • Storage: up to 3 months

E-33/1
  • Connector: double wired
    PCB plug
  • Measuring range: 0-100% O2
  • Output signal: 200 µA
  • Response time:< 20 seconds
  • Warranty: 16 months
  • Storage: up to 3 months

E-43/0
  • Connector: gold plated
    contact rings
  • Measuring range: 0-100% O2
  • Output signal: 25–35.5 mV
  • Response time: < 17 seconds
  • Warranty: 12 months
  • Storage: up to 3 months
  • always 2 pcs per pack

E-47/0
  • AMP phone jack 4P4C
  • Measuring range: 0-100% O2
  • Output signal: in accordance with Hudson
  • 5801 analyzer
  • Response time: < 12 seconds
  • Warranty: 16 month
  • Storage: up to 6 months

E-55/0
  • Connector: 4-pin male socket
  • Measuring range: 0-100% O2
  • Output signal: 250-650nA
  • Response time: < 15 seconds
  • Warranty: 16 months
  • Storage: up to 4 months

E-60/0
  • Connector: AMP phone jack
  • Flow diverter to be ordered seperately
  • Measuring range: 0-100% O2
  • Output signal: 3.8-4.8 mV
  • Response time: < 12 seconds
  • Waranty: 16 months
  • Storage: 4 months

E-60/LF (LONG LIFE SENSOR)
  • Lead-free, ROHS compliant
  • Connector: 3 pin Molex
  • Measuring range: 0-100%
  • Output signal: 0.8-1.25 V
  • Response time: < 5 seconds
  • Warranty: 24 months
  • Storage: up to 6 months

  E-75/A
  • Connector: AMP phone jack
  • Measuring range: 0-100% O2
  • Output signal: 8.5 - 13.5 mV
  • Response time: < 15 seconds
  • Warranty: 24 months
  • Storage: up to 6 months
  • currently n/a

  E-75/1
  • Connector: AMP
  • Measurng range: 0-100% O2
  • Output signal: 10 - 14 mV
  • Response time: < 13 seondcs
  • Warratny: 22 months
  • Storage: up to 6 months
  • currently n/a

E-75/4
  •   Connector: NESJ25
  •   Measuring range: 0-100% O2
  •   Output signal: 10-14 mV
  •   Response time < 13 seconds
  •   Warranty: 22 months
  •   Storage: up to 6 months
  • currently n/a

E-75/6 and E-75/8
  • Connector: E-75/KE6: SM2SH 2pol
  • Connector: E-75/KE8: IP40 3pol
  • Measruring range: 0-100% O2
  • Output signal: 10-14 mV
  • Response time: < 13 seconds
  • Warranty and Storage as E-75/4
  • currently n/a

E-75/9 (new release)
  • Connector: 3.5 phone jack
  • Measuring range 0-100% O2
  • Output signal: 10-13,5 mV
  • Response time: 13 seconds
  • Warranty: 22 months
  • Storage: up to 6 months
  • with flow diverter
  • currently n/a


E-75/13PB
  • compatible to Puritan Bennett
    sensor PB10097559
  • currently n/a

E-75/HL
  • Connector: 3 pin phone connector
  • Measuring Range: 0-100% O
  • Output signal: 10-13.5mV
  • Response time: 13 seconds
  • Warranty: 15 months
  • Storage: up to 6 months
  • currently n/a

E-77/0
  • Connector: RJ11 modular
    plug 4P4C
  • Flow diverter to be ordered sperately
  • Measuring range: 0-100% O2
  • Output signal: 7.5–13.0 mV
  • Response time: < 12 seconds
  • Warranty: 16 months
  • Storage: up to 6 months

E-77/0S
  • Connector: RJ11 modular jack
  • Flow diverter to be ordered seperately
  • Measuring range: 0-100% O2
  • Output signal: 9-13 mV
  • Response time: < 15 seconds
  • Warranty: 16 months
  • Storage: up to 6 months

E-8000
  • Connector: 3 gold plated
    contact rings
  • Measuring range: 0-100% O2
  • Output signal: 14.5–20 mV
  • Response time: < 12 seconds
  • Warranty: 16 months
  • Storage: up to 6 months

Contact Nuova®

Manufacturer/Model OEM Sensor/Machine Nuova Sensors
Aeomed® Aeon 7200, 7400A E-77/0
Airshields (Dräger)® 6735142 E-17/J
Airshields (Dräger)® 6736140 E-55/0
Airshields® (Dräger) C100 specify monitor and oxygen cell
Airshields (Dräger)® Infant Incubator Isolette C2000, C2000e, 8000, 8000plus (OEM sensor MU24903 double pack E-17/A2/2pc
Air Liquide Healthcare® Xtend Ventilator, Monnal T60,T75 OEM sensor YR0049700 E-17/M
Akkutronik® Monsoon III, Fabian, Fabian+ E-17/A4
Allied Healthcare® (B+F Medical) 65004 E-33/0
Alpha Med®   E-17/J
Analystical Industrie® AII2000M/A monitors E-60/0
Analystical Industries® PSR-11-75-KE1, KE2, KE4, KE6, KE8 n/a
Analytical Industrie® PSR-11-915 E-15/0
Analytical Industries® PSR-II-58 E-47/0
Analytical Industries® PSR-11-55 E-55/0
Analytical Industries® PSR-11-77 E-77/0
Analytical Industries® PSR-11-95/4 E-15/4
Analytical Industries® PSR-11-15/2i

E-15/2

Analytical Industries® PSR-11-917-M1 and -MH E-17/A2
Analytical Industries® PSR-11-917-M E-16/0
Analytical Industries® PSR-11-917-M2 E-17/M
Analytical Industries® PSR-11-917-J1 E-25/0
Analytical Industries® PSR-11-917-J6 E-17/J
Analytical Industries® PSR-11-33 E-33/0
Analytical Industries® PSR-11-33-2 ask Nuova
Analytical Industries® PSR-11-60-03 E-77/0S
Analytical Industries® PSR-11-77/0 E-77/0
ATOM® 100 & 101 dual incubator, (ound cap, double pack) E-17/A2A
ATOM® OX-60 E-15/5

ATOM®

2000, 2100 Incubator, 2100G, V220  (round conn.)

E-17/A2A

ATOM®

V2200 (round connector)

E-17/A2A

BCI® R-17 E-17/J
Bertucci® T1/T2 E-33/0
Bio Tek® X74223 E-33/0
Biomed® Sensor 4434 E-14/S
Bird® (see Viasys) AVEA E-17/C
Bird® (see Viasys) Sentry and Senty I E-25/0
BMD® 10006 E-17/J
BREAS® (GE®) Vivo 50 E-17/J
BURKE & BURKE® OOM102 E-17/A2
BURKE & BURKE® OOM104 E-8000
BURKE & BURKE® OOM201 E-15/2
CAREFUSION® (see also Versamed, Bird, Viasys)
Ceramatec® CAG-14 E-09/0
Ceramatec® CAG-1 E-15/0
Ceramatec® CAG-11 E-15/2
Ceramatec® CAG-10 E-15/4
Ceramatec® CAG-13 E-15/5
Ceramatec® CAG-12 E-17/M
Ceramatec® CAG-19 E-33/0
Ceramatec® CAG-18 E-33/1
Ceramatec® CAG-9 E-55/0
Ceramatec® CAG-17 E-77/0
Cheiron® CAG-18 E-33/1
City Technologies® MOX-10 E-11/0
City Technologies® MOX-01 E-17/A2
City Technologies® MOX-02 E-15/5
City Technologies® MOX-09 E-17/M
City Technologies® MOX-04 E-77/0
City Technologies® MOX-03 E-77/OS
City Technologies® MOX-06 E-15/0
Comen® MOX-03 E-77/OS
Covidien® (see Puritan Bennett®)
Criticare® 644 oxygen cell E-17/A2
Criticare® 8100Poet Plus, 8500 Poet, 8500 Poet IQ, IQ2 E-17/A2
Dameca® Alphamed E-17/J
Datascope® 0600-00-0002 E-17/A2A
DP Medical® MVA210 E-15/2
Dräger® (see airshields) Inubator Isolette 2000/8000/8000plus Dräger cell Mu24903 (double pack 2 pc) E-17/A2 (double pack)
Draeger® Original 6850930 n/a
Draeger® 6803290 E-15/0
Draeger® Incubator 8000 old model (see also Airshields) E-8000
Draeger® 6850645/6803290 E-15/2
Draeger® Narcomed 1A,2,2B,3,4 6850645 oxygen cell E-15/2
EME®, Infant Ventilator E-17/M
EnviteC® OOM204 E-17/A4
EnviteC® OOM202-1 E-17/J
EnviteC® OOM202-2 E-09/0
EnviteC® OOM202-2S E-11/0
EnviteC® OxiQuant B E-15/5
EnviteC® OxiQuant RM E-15/0
EnviteC® OOM201 E-15/2
EnviteC® OOM102-1 E-15/5
EnviteC® OxiQuant M E-15/5
EnviteC® OOM101 E-15/0
EnviteC® OOM102 E-17/A2
EnviteC® OOM102-C E-17/A2
EnviteC® OOM103 E-17/A2
EnviteC® OOM103-1 E-17/J
EnviteC® OOM103-1M E-25/0
EnviteC® OOM202 E-17/M
EnviteC® OOM107 E-33/0
EnviteC® OOM107-2 E-33/1
EnviteC® OOM105 E-77/0
EnviteC® OOM104 E-8000
EnviteC® OOM106 E-17/A2A
EnviteC® OOM110 E-15/4
eVent Medical Inspiration LS E-17/M
F. Stephan® Stefanie E-11/0
F. Stephan® OOM101 E-15/0
F. Stephan® ARTEC E-15/5
F. Stephan® Alia part no. 13006001 (M-11) E-11/0
F. Stephan® Christina 1107600009 Vent. E-17/J
Fraser Harlake® 66-00453 E-33/0
Fresenius® X74223 E-33/0
Ginevri Italy® Figaro 25 sensor not available
GE/Marquette® R-22 E-17/A2
GE®/BREAS® see under BREAS
GE/Ohmeda® see under Ohmeda
Hamilton® Amadeus, Veolar E-33/0
Hamilton® Oxygen cell HM-12, Raphael, Galileo, Arabella, Aladdin E-17/M
Hamilton® Oxygen cell HM-10 E-15/0
Hamilton® Oxygen cell HM-13, HM-14 E-15/2
Hamilton ® Oxygen cell HM-12 E-17/A2
Hamilton® Oxygen cell HM-11 E-17/J
Hamilton® Oxygen cell HM-03 E-77/0
Hamilton® G5 E-17/A2
Heinen und Loewenstein® OOM102 E-17/A2
Heinen und Loewenstein® Leon n/a
Henleys® 5556 E-17/A2
Henleys® 5567 E-17/J
Henleys® 5569 E-33/0
Heyer® Pocket O2 E-33/0
Hill-ROM® (see Airshields®) E-17/A2
Hudson® 5800, 5801, 5803 E-47/0
Hudson® 5556 E-15/0
Hudson® 5557, V-14 E-15/2
Hudson® 5566, V-12 E-17/A2
Hudson® 5567, V-11 E-17/J
Hudson® 5568 C1, V-01 E-33/0
Hudson® 5558, V-03 E-77/0
Hudson® 5565 ask Nuova
Hudson® 5569, V-02, 5525, 5528, 5529, 5550, 5552 E-33/0
Hudson® 5500, V-05, 5557, 6477, 5590, 5595, 5584 E-55/0
IMED® 810/825 E-33/0
Infrasonics® Adult Star, 60116 E-17/M
Integral Process® all ask Nuova
Invivo® 9445 sensor, Precess 3160, Millenia 3500, 3155A E-17/J
IT-Gambert® M-43 (double pack) E-43/0
IT-Gambert® M-25 E-25/0
IT-Gambert® M-16 E-16/0
IT-Gambert® M-15 E-15/5
IT-Gambert® M-14TB M-14TB
IT-Gambert® M-14 E-14/0
IT-Gambert® M-14/ST E-14/S
IT-Gambert® M-18T E-18/T
IT-Gambert® M-12 E-17/A2
IT-Gambert® M-12/A E-17/A2A
IT-Gambert® M-10 E-15/4
IT-Gambert® M-16HT E-16/HTT
IT-Gambert® M-09 E-09/0
IT-Gambert® M-08 E-8000
IT-Gambert® M-07 E-77/0
IT-Gambert® M07/S E-77/OS
IT-Gambert® M06 E-33/1
IT-Gambert® M05 E-33/0
IT-Gambert® M-04 E-17/M
IT-Gambert® M-04C E-17/C
IT-Gambert® M-03 E-17/J
IT-Gambert® M-02/L2 E-15/2
IT-Gambert® M-01 E-15/0
Ivac® 1200, 1225 E-33/0
Kontron® ABT5100 E-17/J
Libra® OM500 E-33/0
Lifecare® PLV-100/102/37-079 E-17/J
Maxtec®

OM25AE/OM-25A Monitor, OM-25MEL

E-75/7
Maxtec® Max-1 E-15/0
Maxtec® Max-7 E-15/5
Maxtec® Max-11 E-15/2
Maxtec® Max-10 E-15/4
Maxte®c Max-16 E-16/0
Maxtec® Max-41 E-16/0
Maxtec® Max-47 E-47/0
Maxtec® Max-48 E-60/0
Maxtec® Max-12A E-17/A2
Maxtec® Max-12C E-17/C
Maxtec® Max-13 (CAG13) E-17/J
Maxtec® Max-12, 22C E-17/M
Maxtec® Max-13 M-14/TB
Maxtec® Max-13C E-14/0
Maxtec® Max-13J M-14/TB
Maxtec® Max 25E, Max-250 ESF, OM-A25 Analyzer, OM-25ME Monitor, OM-25MEL Monitor (exernal sensor) E-25/0
Maxtec® Max-125M E-16/0
Maxtec® Max-16 E-16/0
Maxtec® Max 250E E-75/7
Maxtec® Max-250A E-75/A
Maxtec® Max-250K E-75/4
Maxtec® Max-250B E-75/6
Maxtec® Max250E/OM-25MEL Monitor E-75/9
Maxtec® Max-25E E-25/0
Maxtec® Max-19 (CAG19) E-33/0
Maxtec® Max-18 (CAG18) E-33/1
Maxtec® Max-9 E-55/0
Maxtec® Max-17 (CAG17) E-77/O
Maxtec® Max-2 E-15/1
Maxtec® Max-3 E-77/OS
Maxtec® Max-8 ask Nuova
Maxtec® Max-15 (CAG15) ask Nuova
Maxtec® Max-25/250/OM25 Analyzer E-75/1
Maxtec® Max-14 E-09/0
MEDEC®, Belgium M-03 sensor E-17/J
Medigas® T-1/T-2 E-33/0
Megamed® M2 E-33/0
Megamed® M1 E-33/1
Mercury Medical® all ask Nuova
Mindray® VT50 Ventilator E-77/0S
Mindray® MOX-2 sensor with different sensor cap for WATO series E-15/5M
Mindray® SV-series E-77/0S
MSA® (Catalyst Resarch) 655264/655263 E-15/0 also E-15/2
MSA® (Catalyst Research) 710644 E-16/0
MSA® (Catalyst Research) 472062/470644 E-17/M
MSA® (Catalyst Research) 478841, 485955 E-33/0
MSA® (Catalyst Research) 485905, 655262 E-33/1
MSA® (Catalyst Research) 655265 E-55/0
MSA® (Catalyst Research) 804674 E-77/0
MSA® MiniOx 3000   E-15/5
MSA® MiniOx I, II, III, 406931 E-17/J
MSA® MiniOx IA 806572 E-09/0
Newport® Ventilator 500, Wave Ventilator E-77/0
Newport® Ventilator e500 & E360Event, HT-70 E-75/9 currently n/a
Newport® VM200 VM200 E-77/0
Newport® Wave Ventilator OM100, OM105 E-77/0
Nuova M-OA2003 Oxygen Monitor E-49/0
OES Medical® MOX-3 E-77/OS
Ohmeda® (GE®) Giraffe (double pack) E-43/0 (2pcs)
Ohmeda® (GE®) Oxygen sensor 0237-2034-700 E-15/0
Ohmeda® (GE®) Smart Vent 7900, 7100 Ventilator, Modulus SE, S-5 Espire, Aestiva, 3000/5, Aespira, Oxygen sensor 6050-004-110 E-15/4
Ohmeda® (GE®) Centiva S/5 Oxygen sensor 6051-0000-216 E-17/A2
Ohmeda® (GE®) Oxygen sensor 6051-0000-224 E-15/2
Ohmeda® (GE®) Oxygen sensor 6051-0000-217 E-17/J
Ohmeda® (GE®) Oxygen sensor 6051-0000-222 E-17/M
Ohmeda®  (GE®) Oxygen sensor 6051-0000-219 E-77/0
Oxiquip® T-1/T-2 E-33/0
Oxitron® 3710 E-15/2
Oxitron® 3310 E-17/J
Oxitron® 3250 E-33/0
Oxitron® 3050 E-33/1
Pacifitech® all ask Nuova
Paragon Services® PS-2000 E-15/2
Paragon Services® PS-1000 E-15/0
Penlon® MOX-3 E-77/OS
Penlon® 58780 oxygen sensor E-15/5
Penlon MTS oxygen sensors E-77/0
Philips V680P E-14/S
PPG Biomedical® Saracap 504055-001 E-17/M
PPG Biomedical®, Irisa 505055-001 E-15/2
Puritan Bennett® 740/760/840, PB2000 TEST 4-072214-0 E-16/0
Puritan Bennett® sensor PB10097559 E-75/13PB
Puritan Bennett® 7820/7200 Vent, PB850 4-020933-00 E-17/J
Puritan Bennett® 840 Ventilator (OLD MODEL)   E-75/1 currently n/a

Respironics®

RESMED®

Esprit/Lifecare 1001454, Wisperflow (see CARADYNE)

Elisee 150/250 (lead free sensor)

E-15/5

E-60/LF

Schoch® Esprit/Lifecare T1/T2 E-33/0
Sechrist® 650 43170 E-77/0
Sensidyne® SV-26 E-09/0
Sensidyne® SV-14A E-15/0
Sensidyne® SV-20A E-15/4
Sensidyne® SV-11A E-17/J
Sensidyne® SV-12A E-17/M
Sensidyne® SV-25A E-25/0
Sensidyne® SV-01 E-33/0
Sensidyne® SV-02 E-33/1
Sensidyne® SV-03 E-77/0
Sensor Tec ®(BPR Medical®) ST-05 E-55/0
Sensor Tec® (BPR Medical®) ST-13 E-15/0
Sensor Tec® (BPR Medical®) ST-14 E-15/2
Sensor Tec® (BPR® Medical) ST-10 E-15/0
Sensor Tec® (BPR® Medical) ST-12 E-17/A2
Sensor Tec® (BPR Medical®) ST-11 E-17/J
Sensor Tec® (BPR Medical®) ST-12, ST-04 E-17/M
Sensor Tec® (BPR Medical®) ST-02 E-33/1
Sensor Tec® (BPR Medical®) ST-01 E-33/0
Sensor Tec® (BPR Medical®) ST-03 E-77/0
Shoch® T-1/T-2 E-33/0
SIARE® Morpheo, Perseo E17/J
Siemens® 9004979/6419332, Ventilators 900, 900C, 900D, 700, 710, 300, V710, 600 E-17/M
Siriusmed R-30 E-17/A2
SLE® 2000HFO/2000 older style Vent (2 pin connector) E-75/6 currently n/a
SLE® 4000/5000 Vent., 3pin connector E-75/8 currently n/a
SLE® T801 Monitor E-15/5
Spacelabs®  Oxygen sensor015-0285-00, 90513 E-15/5
Spacelabs®  Oxygen sensor 015-0132-03, 90514 gas analyzer E-17/A2
Sun Medical®   E-33/0
Taema® Alys, Clarys, YR010100 E-15/5
Taema® Cesar (new) E-17/A2
Taema® Eole, Cesar E-17/J
Taema® YR 049700, Cesar 2, Horus E-17/M
Taema® KV050501, Oxy2100 E-33/0
Taema® YR 010100, Alys, Claris E-15/5
Teledyne® C-41131 (R15) E-15/0
Teledyne® C-61339 (R23MED) E-15/2
Teledyne® R30MED E-15/4
Teledyne® TED-AX300 (R17MED, R17MEDV) E-15/5
Teledyne® R22MED E-17/A2
Teledyne® B-62321 (R24MED) E-17/M
Teledyne® R24MED E-17/M
Teledyne® R29MED E-25/0
Teledyne® C1R (B 39022) E-33/1
Teledyne® R13MED E-55/0
Teledyne® R15MED E-15/0
Teledyne® R26MED E-15/5
Teledyne® R32MED ask Nuova
Teledyne® C2R (B 39023) E-33/0
Teledyne® Class C1, T1/T2, TED160, 190 E-33/0
Teledyne® AX300/MX300 E-15/5
Teledyne® R-36 E-17/A2
Teledyne®  A51327 (T-7) TED60T, 191T,200T, 200T E-77/0
Vapotherm®  Precision Flow E-75/1
Vascular Technology®  100352 E-15/0
Vascular Technology®  101372 E-15/2
Vascular Technology®  103100 E-17/M
Vascular Technology®  103101 E-33/0
Vascular Technology®  103102 E-77/0
Vascular Technology®  103103 E-33/1
Vasular Technology®  101272 E-15/0
Vasular Technology®  100580 E-17/J
Ventronix®  5525, 5528, 5529 E-33/1
Ventronix®  5500, 5570, 5575, 5584, 5590, 5595 E-55/0
Versamed®  I-Vent 201AB,HC,IC, IC/AB E-16/HTT
Viasys®  (CAREFUSION®) 6400/8400/VIP Ventilator Sensor P/N 60030 E-17/J
Viasys®  (CAREFUSION®) AVEA/Infant Flow SiPap E-17/C
Viasys ®  (CAREFUSION®) VELA E-75/4 currently n/a
Viasys®  (CAREFUSION®) 2000 older model E-75/6 currently n/a
VTI®  VT1272, 101272, 100352 E-15/0
VTI®  101372, 100352 E-17/J
VTI®  103100 E-17/M

Version July 2023

All trade marks are recognized
