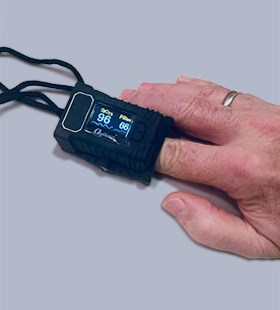

Oxywatch finger pulsoximeter
 |
Features and specifications:
Oxywatch MD300CB3 is a robust finger pulsoximeter simply operated by just one function key measuring SpO2, puls, while displaying plethysmogram and puls bar
The display can be viewed from various angles using the same function key. The easy to view, bright OLED display be adjusted in various steps from dark to bright.
Because of its soft, skin friendly silicon housing the device is protected against ingress of liquids according to IPX2. Further it can withstand drops to the ground of 1 meter.
Automatic power off function when no measurement detected.
|
| Application: | Adult and Pediatric |
|
SpO2:
• Measuring Range: |
70 - 100% SpO2 |
| • Accuracy: | 70 - 100% +/- 3% 0 - 69% no definition |
| • Resolution: | 1% |
| Pulse: | |
| • Measuring Range: | 30 - 235 BPM |
| • Accuracy: |
30 - 99 BPM +/- 2 bpm |
| • Resolution: | 1 BPM |
| • Display: | OLED, adjustable brightness, low-bat indicator |
| • Parameters: | SpO2, Pulse, Pulse bar, Plethysmogram |
| • Operation Temp.: | 5 - approx. 40oC |
| • Storage Temp.: | 20 - approx. 55oC |
| • Ambient Humidity: | < 80% non-condensing during operation < 93% non-condensing under storage conditions |
| • Power requirement: | 1 x AAA, 1.5V, 1200 mAh alkaline battery for continuous use of 8 hours |
| • Accessories: | 1 x battery, 1 x lanyard, 1 x user manual |
